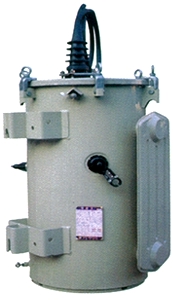

PROTECTED TYPE POLE MOUNTED TRANSFORMER |
|
 |
- It has a protection device inside to protect pole-mounted transformer from short-circuits, overloads, overvoltage and contact from outside, which cause the main troubles in pole transformers. So it prevents damage caused by people and materials, and extends its durability.
|
|
 |
? Transformer specification
- Phase : Single phase
- Frequency : 50Hz or 60Hz
- Rated capacity : 25kVA ~ 167kVA
- System voltage :
| H.V. : |
7.2kV, 12kV, 24kV
7.62/13.2YkV, 13.2Grdy/7.62kV, 14.4/24.94ykV, 24.94Grdy/14.4kV |
| L.V. : |
220/110V, 230/115V, 240/120V, 440/220V, 460/230V, 480/240V |
? Standard accessories for Protected type pole mounted transformer
-Magnex interrupter (H.V. side) |
-Current limiting back-up fuse |
-Under oil arrester |
-H.V. bushings (Epoxy) |
-L.V. bushings |
-Off-load tapchanger |
-Radiators |
-Lifting lugs |
-Support lugs |
-Name plate |
-Grounding terminals |
-Pressure relief device |
|
|
|
| USA, Canada, Japan, saudi Arabia, Yemen, Indonesia, the Philippines, India, Malaysia, Cambidia, Bangladesh, Kuwait,etc. |
|
|
|
