MEDIUM SIZE TRANSFORMER |
|
 |
- In order for consumers to use it with safety and convenience,it is manufactured through careful selection of materials and process control. So it is easy to maintain and control in a high degree of safety.
|
|
 |

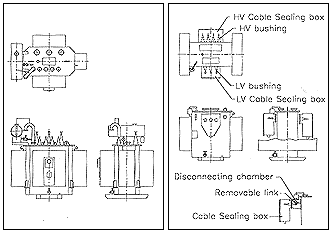

Bare Bushing type /
Cable Sealing box type
? Transformer specification
- Phase : Single phase or three phase
- Frequency : 50Hz ~ 60Hz
- Rated capacity : 100kVA ~ 3000kVA
- System voltage
H.V. : 3.6kV, 7.2kV, 12kV, 24kV, 36kV
L.V. : 220/110V ~ 480/240V, 220V ~ 480y/277V, 3.6kV, 7.2kV
? Accessories for medium size transformer
Normally Supplied |
Supplied On request |
-H.V. bushings
-L.V. bushings
-Off-loadtap changer
-Oil filing hole or handhole
-Lifting lugs
-Liquid oil level gauge
-Oil drain plug or valve
-Skid base
-Grounding terminals
-Rating plate (Name plate)
-Radiators
-Dehydrating breather |
-Conservator
-Arcing horns on H.V. bushings
-Thermometer pockets
-Dial thermometer with or without contacts
-Rollers, unidirection or bidirectional
-Buchholz relay
-Pressure relief device
-Jacking pads
-Radiator shut-off valves
-Cable sealing boxes |
|
|
|
